Finding the cigarette lighter fuse location in a 2003 Jeep Liberty can be tricky. This post will help you locate it quickly.
The cigarette lighter in your Jeep Liberty is essential for various reasons. It powers many devices, from phone chargers to GPS units. When it stops working, the fuse is often the culprit. Knowing its exact location can save you time and frustration.
In this guide, we’ll show you where to find the fuse and how to replace it. Whether you’re a seasoned car owner or new to vehicle maintenance, this information will be useful. Let’s get started on fixing that cigarette lighter fuse in your 2003 Jeep Liberty.

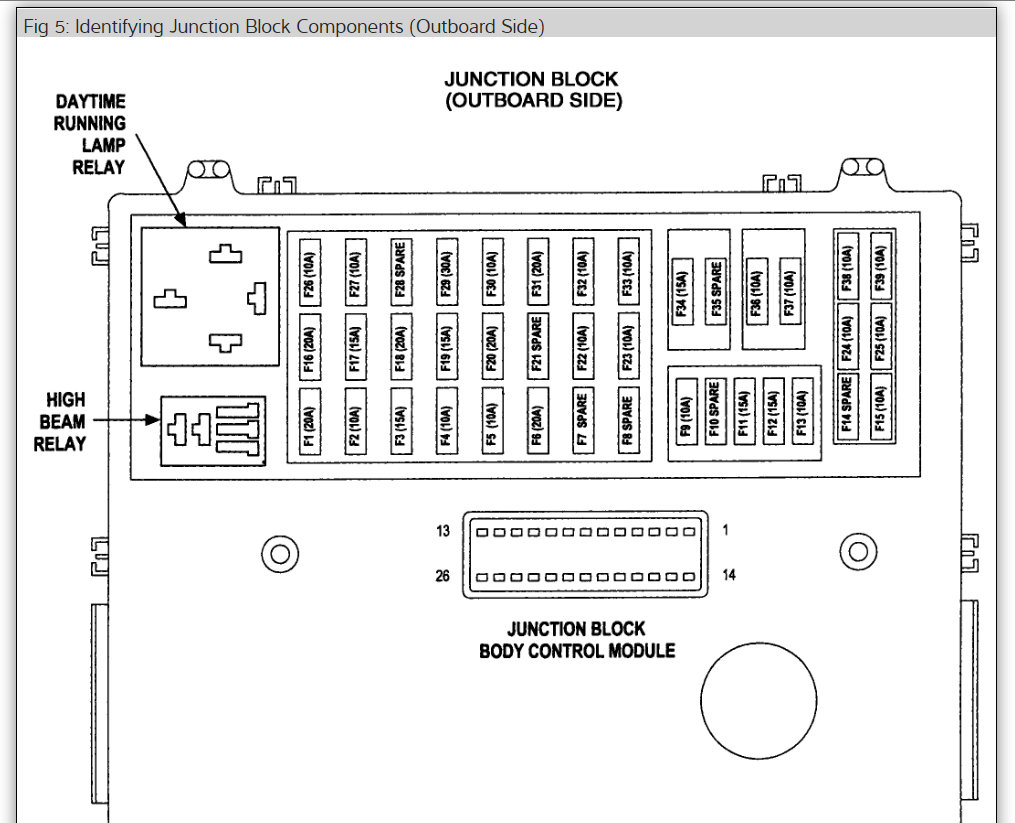

Credit: www.2carpros.com
Locating The Fuse Box
Having trouble with the cigarette lighter in your 2003 Jeep Liberty? You might need to check the fuse. But first, you need to locate the fuse box. This guide will help you find the fuse box quickly and easily. Let’s dive into the two main locations: inside the cabin and under the hood.
Inside The Cabin
The first place to check is inside the cabin. Open the driver’s side door and look to the left of the steering wheel. You will see a small panel. This panel hides the fuse box. To access it, simply pull the panel open. You should now see the fuse box with various fuses. Look for the diagram on the panel or in your owner’s manual. This will help you identify the cigarette lighter fuse.
Under The Hood
If you didn’t find the fuse inside the cabin, check under the hood. Pop the hood and secure it with the prop rod. Locate the fuse box near the battery. It is usually a black box with a removable cover. Open the cover to access the fuses. Again, refer to the diagram on the cover or in your owner’s manual. Find the specific fuse for the cigarette lighter. Replace it if needed.
Credit: www.cargurus.com
Tools Needed
When it comes to finding the cigarette lighter fuse in your 2003 Jeep Liberty, having the right tools on hand can make the task much easier. Whether you’re a seasoned car enthusiast or a complete beginner, preparing yourself with the necessary tools is crucial for a smooth process. Let’s dive into the essentials you’ll need to successfully locate and replace the cigarette lighter fuse in your vehicle.
Basic Tools
First and foremost, you need a few basic tools to get started. These are items you might already have lying around your garage or toolbox.
- Flathead Screwdriver: This will help you gently pry open the fuse box cover without damaging it. No one wants a scratched-up cover!
- Needle-Nose Pliers: Fuses can be tiny and tricky to pull out with your fingers alone. Needle-nose pliers allow you to grip and remove the fuse easily.
- Fuse Puller: If you have one, a fuse puller can be even more convenient than pliers. These are often included in fuse replacement kits.
- Replacement Fuse: Make sure you have the correct amp rating for your cigarette lighter fuse. In most cases, this will be a 20-amp fuse.
Safety Equipment
Safety first, always! While replacing a fuse is a relatively simple task, it’s important to take precautions to protect yourself and your vehicle.
- Gloves: Wearing gloves can protect your hands from any sharp edges or hot components under the hood.
- Safety Glasses: Your eyes are precious! Safety glasses will guard against any unexpected sparks or debris.
- Car Manual: Though not exactly “equipment,” your car manual is a critical resource. It provides the exact location and specifications for the fuses in your Jeep Liberty.
Gathering these tools and safety equipment beforehand will save you time and frustration. Plus, it sets you up for a quick and successful fuse replacement. Now that you’re ready with everything you need, let’s move on to locating the fuse box and identifying the cigarette lighter fuse. Ready to roll? I thought so!
Accessing The Fuse Box
Dealing with a faulty cigarette lighter in your 2003 Jeep Liberty? You might need to check the fuse. The first step is accessing the fuse box. This is a straightforward process. Follow these steps to locate and access the fuse box easily.
Opening The Panel
First, find the fuse box panel. It’s usually under the dashboard. Use a flashlight if it’s dark. Locate the panel near the driver’s side footwell. Gently pull the panel to open it. It should pop off easily.
Removing The Cover
Once the panel is open, you will see a cover. This cover protects the fuses. To remove it, find the small tabs or clips on the sides. Press these tabs gently. Lift the cover off to reveal the fuses inside.
Now, you have access to the fuse box. You can check and replace the cigarette lighter fuse if needed. This simple process ensures your Jeep Liberty’s cigarette lighter works correctly.
Identifying The Cigarette Lighter Fuse
Have you ever tried to use the cigarette lighter in your 2003 Jeep Liberty, only to find it doesn’t work? The culprit might be a blown fuse. Identifying and locating the correct fuse can save you a trip to the mechanic. So, let’s dive into the process of finding the cigarette lighter fuse in your Jeep Liberty.
Fuse Diagram
First things first, you need to find the fuse diagram for your 2003 Jeep Liberty. This diagram is usually located on the inside cover of the fuse box. The fuse box is under the dashboard on the driver’s side. Here is a simple step-by-step guide to help you:
- Open the driver’s side door.
- Look under the dashboard to locate the fuse box.
- Open the fuse box cover; you will see a diagram inside.
This diagram will show you the location of each fuse and its corresponding function. Look for the fuse labeled “Cigarette Lighter” or “Power Outlet”.
Fuse Specifications
Once you have located the cigarette lighter fuse on the diagram, it’s time to check its specifications. The fuse for the cigarette lighter in the 2003 Jeep Liberty is typically a 20-amp fuse. Here’s how you can confirm:
- Locate the fuse in the fuse box as per the diagram.
- Check the number on the fuse; it should read “20”.
If the fuse is blown, the metal strip inside it will be broken. You can replace it with a new 20-amp fuse. Make sure to use the correct amp rating to avoid electrical issues.
Remember, keeping a few extra fuses in your glove compartment can save you from future headaches. And there you have it! Identifying and replacing the cigarette lighter fuse is a simple task that can keep your Jeep Liberty running smoothly.
Tip: If the new fuse blows quickly, there might be an underlying electrical problem. In that case, it’s best to consult a professional.
Replacing The Fuse
Is your 2003 Jeep Liberty’s cigarette lighter not working? It could be due to a blown fuse. Replacing the fuse is a simple task that can save you a trip to the mechanic. In this guide, we’ll walk you through the steps to replace the fuse, ensuring your cigarette lighter is back in action quickly. Let’s get started!
Removing The Old Fuse
First things first, let’s locate the fuse box. In the 2003 Jeep Liberty, the fuse box is typically found under the dashboard on the driver’s side. Here’s a step-by-step guide to removing the old fuse:
- Turn off the vehicle: Ensure your Jeep is turned off to avoid any electrical issues.
- Open the fuse box: Locate the fuse box cover and carefully remove it. You might need a flathead screwdriver for this.
- Identify the cigarette lighter fuse: Refer to the fuse diagram on the back of the fuse box cover or your owner’s manual. The cigarette lighter fuse is usually labeled as “CIG” or “Lighter”.
- Remove the fuse: Using a fuse puller or a pair of needle-nose pliers, gently pull out the fuse. Be careful not to damage the surrounding fuses.
Installing A New Fuse
Now that you’ve removed the old fuse, it’s time to install a new one. Follow these simple steps:
- Choose the correct fuse: Make sure you have the right amperage rating for the new fuse. The 2003 Jeep Liberty typically uses a 20-amp fuse for the cigarette lighter.
- Insert the new fuse: Carefully place the new fuse into the same slot where you removed the old one. Ensure it is seated firmly.
- Replace the fuse box cover: Once the new fuse is in place, put the fuse box cover back on and secure it.
- Test the cigarette lighter: Turn on your Jeep and test the cigarette lighter to see if it’s working. If it is, congratulations! You’ve successfully replaced the fuse.
If your cigarette lighter still isn’t working, there might be another issue at play. But for most cases, replacing the fuse does the trick.
Replacing a fuse might seem daunting, but with these easy steps, you can do it yourself and save some money. Have you ever replaced a fuse in your car before? Share your experiences in the comments below!
And remember, if you ever feel unsure, don’t hesitate to seek help from a professional. Happy driving!
Credit: www.youtube.com
Testing The Cigarette Lighter
Find the cigarette lighter fuse in the 2003 Jeep Liberty under the hood. It’s located in the fuse box near the battery.
To ensure your 2003 Jeep Liberty’s cigarette lighter is functioning, start with a few tests. Testing the cigarette lighter can help identify if the issue lies with the fuse or another part. Follow these simple steps to check the power and functionality of your cigarette lighter.Power Check
First, check if the cigarette lighter receives power. Insert a small electronic device, like a phone charger, into the cigarette lighter socket. Turn on the ignition. If the device lights up or starts charging, the socket is receiving power. If not, the issue might be with the fuse.Functionality Test
Next, test the cigarette lighter’s functionality. Press the lighter all the way in and wait for it to pop out. If it heats up, it is working correctly. If it does not pop out or heat up, the problem might be with the lighter itself. Or it could be a fuse issue. By performing these simple checks, you can diagnose the cigarette lighter problem quickly. “`Common Issues
Experiencing issues with your 2003 Jeep Liberty cigarette lighter fuse can be frustrating. Knowing common issues helps in quick troubleshooting. This can save time and effort.
Blown Fuses
One frequent issue is blown fuses. A blown fuse stops the cigarette lighter from working. Replacing the fuse usually solves this problem.
The fuse might blow due to overloading. Using multiple devices at once can cause this. Always check the fuse rating before replacing it.
Loose Connections
Loose connections can also cause problems. The cigarette lighter may not work if connections are not secure. Ensure all wires are tightly connected.
Sometimes, the socket itself may be loose. This can prevent the lighter from functioning properly. Check the socket and fix any loose parts.
Preventive Measures
Ensuring that your 2003 Jeep Liberty’s cigarette lighter fuse remains in good condition is crucial. This small but essential component allows you to charge devices or use other accessories. To avoid the hassle of dealing with a blown fuse, it’s important to take some preventive measures. Here’s how you can keep it in top shape.
Proper Usage
Understanding proper usage is the first step in preventing issues with your cigarette lighter fuse. Always use compatible devices and avoid overloading the lighter socket. For instance, plugging in multiple high-power devices can cause the fuse to blow.
- Use Appropriate Devices: Stick to devices meant for car lighter sockets.
- Avoid Overloading: Don’t use devices that draw more power than the socket can handle.
Remember, the cigarette lighter socket is not a power outlet. Treat it gently to ensure long-term functionality.
Regular Maintenance
Regular maintenance can save you from unexpected issues. Check the fuse periodically to ensure it’s in good condition. Here’s a simple maintenance checklist:
- Inspect the Fuse: Look for any signs of wear or damage.
- Clean the Socket: Dust and debris can accumulate and cause problems.
- Replace When Necessary: If the fuse looks worn out or damaged, replace it immediately.
Follow these steps, and you’ll significantly reduce the chances of a blown fuse disrupting your day. A few minutes of maintenance can prevent a lot of frustration.
By incorporating these simple preventive measures, you can ensure that your 2003 Jeep Liberty’s cigarette lighter fuse remains functional and reliable. Proper usage and regular maintenance go a long way in keeping your vehicle in top shape. So, next time you plug in your phone charger, you can do so with confidence!
Frequently Asked Questions
Where Is The Fuse For The Cigarette Lighter In A 2003?
The fuse for the cigarette lighter in a 2003 vehicle is in the fuse box under the dashboard. Check the owner’s manual for the specific fuse location and rating.
Which Fuse Is For Cigarette Lighter?
The cigarette lighter fuse is usually found in the fuse box under the dashboard or in the engine compartment. Refer to the vehicle’s manual for the exact fuse number and location. Commonly, it is labeled as “CIG LTR” or “ACC.
”
Where Is The Cigarette Lighter Fuse In A 2005 Jeep Liberty?
The cigarette lighter fuse in a 2005 Jeep Liberty is located in the interior fuse box. It’s fuse number 7. The fuse box is beneath the dashboard on the driver’s side.
What Are Common Problems With A 2003 Jeep Liberty?
Common problems with a 2003 Jeep Liberty include engine issues, transmission failures, and suspension problems. Electrical glitches and rust are also frequent concerns. Regular maintenance helps prevent these issues.
Conclusion
Locating the cigarette lighter fuse in your 2003 Jeep Liberty is easy. Follow the steps mentioned in this guide. Keep your vehicle’s manual handy for reference. Regular maintenance ensures your car stays in top shape. Always replace blown fuses promptly.
This helps avoid electrical issues. Stay safe and enjoy your drives. Happy motoring!
